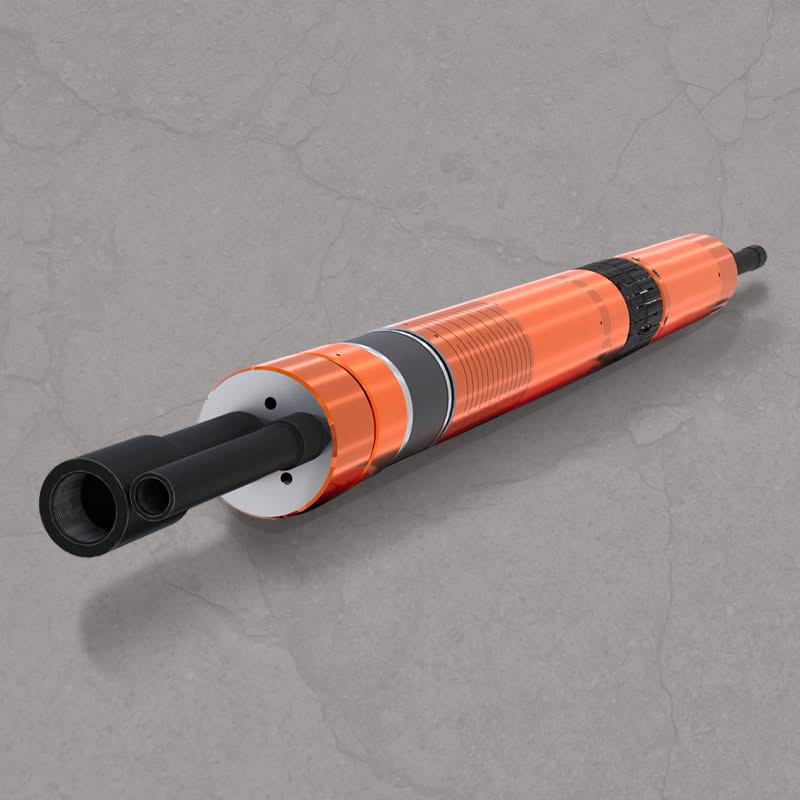

HYDRAULIC-SET ESP PACKERS

NewLift Solutions hydraulic-set ESP packers are designed to provide optimal casing protection when using an electric submersible pump (ESP). The flexible feed-through design has been simplified to ensure easy retrieval and redress. ESP packers are available with multiple elastomer trims and penetration options for use in a variety of situations, including fluid injection, venting of annular pressure, and instrument wire port bypass. In each case, our ESP packers provide cost-effective casing protection, pressure and fluid control, and zone separation essential to managing reliable production.

BENEFITS

Take less time for operation and retrieval

—
Reduced number of parts simplifies the design

Obtain trouble-free set and release

—
Hydraulically set, straight pull-through release eliminates errors

Get the options you need for your well

—
Multiple elastomer trims and feed-through penetrator options enhance flexibility

applications

Artificial lift and other situations using ESP systems
Conventional, unconventional, land, and offshore wells

capabilites

Anti-preset feature prevents setting while running in hole
Elastomer trims include HNBR, FKM, and FEPM

features

Optional threaded connections will accept a pack-off power cable feed-through system with cable pigtails or a drop-through penetrator
Additional optional ports enable venting of annular pressure, fluid injection through the packer, and/or instrument wire port bypass

TECHNICAL CHARACTERISTICS

Packer Size x Tubing*	Penetrations	Temp Rating	Penetrations	Penetrations	Release Force
5 x 2⅜ in. (127 x 60mm)	QTY 3 x ⅜ in.	300°F max. (150°C max.)	5,000 psi** (351.6 kg/cm)	HNBR/ AFLAS/ VITON	Adjustable – by 10,000 lb plus
5 ½ x 2⅜ in. (140 x 60 mm)	QTY 4 x ⅜ in.
6⅝ x 3½ in. (143 x 89 mm)	QTY 1 x 2⅜ in. and 4 x ⅜ in.
7 x 3½ in. (178 x 89 mm)	QTY 1 x 2⅜ in. and 4 x ⅜ in.
9⅝ x 4½ in. (219 x 114 mm)	QTY 1 x 2⅞ and 4 x ½ in.

*Tubing size listed is largest possible. Smaller sizes are available.
**Pressure rating may be higher in some configurations.

Various penetration options are available. Examples are shown above, but customized options are available.
