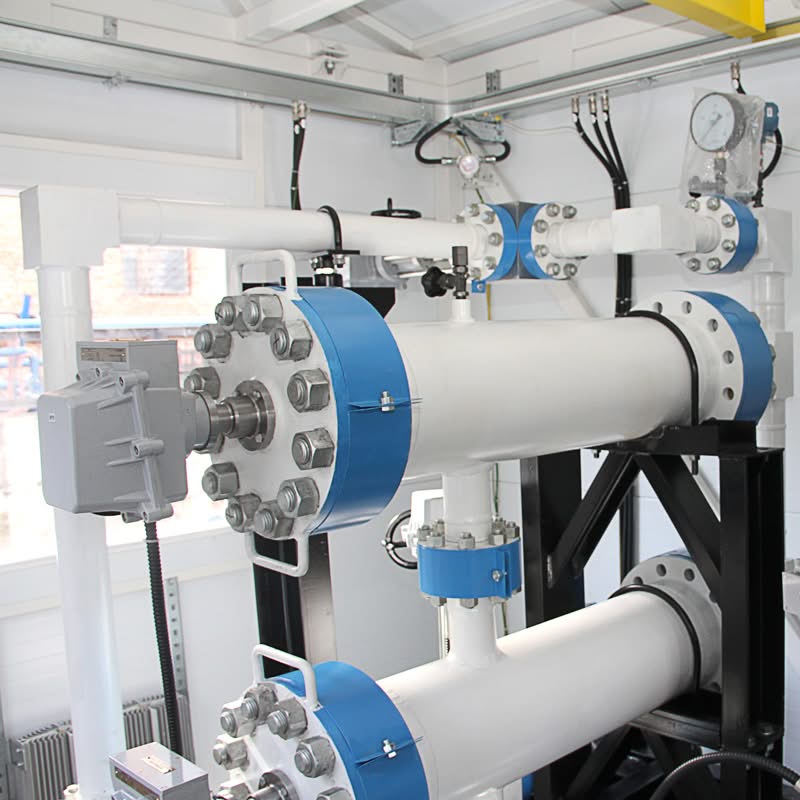

SURFACE WATER FILTER
Our surface water filter systems remove solids larger than 2 microns in size from produced water, industrial fluids, and other surface liquids. These skid-mounted, mobile units are designed to filter fluids under high pressure and feature cartridges that are easy to replace when needed.
BENEFITS
Cartridges enable quick and simple filter replacement as needed
Skid-mounting enables you to easily position and install the system wherever you want
Rugged design gives you the flexibility to filter high-pressure water down to 2 microns
applications
- Water flood fluid cleaning
- Preparation of well killing fluids
- High-pressure fluid filtering
- Block pumping stations
capabilities
- Filters solids and fines as small as 2 microns in size
- Handles flowrates up to 27,500 gal/hr (125 m 3 /hr)
features

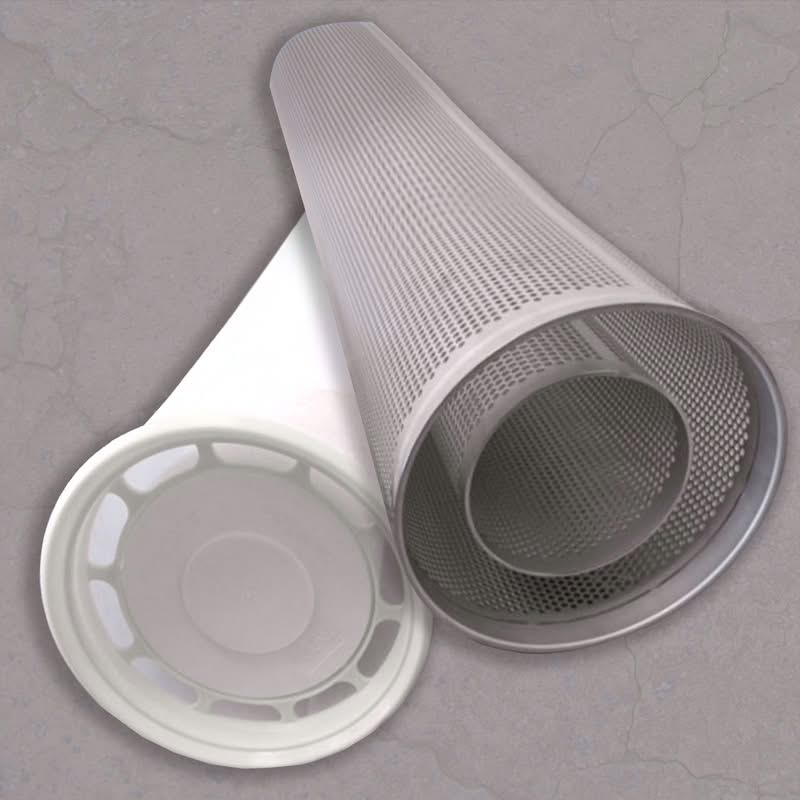

- Filter cartridges are easily replaced as needed, saving time and hassle
- Mobility enables you to easily place the filtration system where you want it
- Rugged design can handle pressures up to 5,000 psi (35 MPa) while still filtering particles down to 2 microns in size
- Flexible design enables in-line installation with high-powered water lines between production and injection wells, or as part of a block pumping station
TECHNICAL CHARACTERISTICS
|
Characteristic name |
Characteristic value |
|
Maximum capacity |
12,560 bbl/d |
|
2000 m 3 /d |
|
|
Maximum operating pressure |
3,625 psi |
|
25 Mpa |
|
|
Solids content after filtration |
30 mg/l |
|
Slotted filter screen size |
100-300 mcm |
|
Polypropylene filter mesh size |
1-10 mcm |
